Cathodic ED Paint Epoxy Electrophoretic Coating

Cathodic epoxy electrophoretic coating is a water-based coating that uses electrochemistry to evenly apply positively charged epoxy resin-based paint to the surface of a metal substrate (cathode). Its key features are:

1.Environmental friendliness: Uses water as the dispersing medium, with extremely low VOC (volatile organic compound) content (<1%).

2.High protective performance: Forms a dense coating with salt spray resistance exceeding 1,000 hours (ISO 9227 standard).

3.High degree of automation: Suitable for large-scale assembly line production (e.g., automotive and appliance industries).

Cathodic ED Paint Epoxy Electrophoretic Coating

Cathodic epoxy electrophoretic coating (also called cathodic e-coat) is an electrochemical process where epoxy-based resins deposited on a conductive substrate (cathode) form uniform, corrosion-resistant films.

Key reactions:

1.Electrolysis: Water reduction at the cathode generates OH-ions.

2.Electrophoresis: Positively charged epoxy-amine particles migrate toward the cathode.

3.Electrodeposition: Particles coagulate on the substrate, forming an insulating film.

4.Electroosmosis: Water is squeezed out, enhancing adhesion.

Pre-treatment: Degreasing → washing → surface adjustment → phosphating (forming a phosphate layer to enhance adhesion).

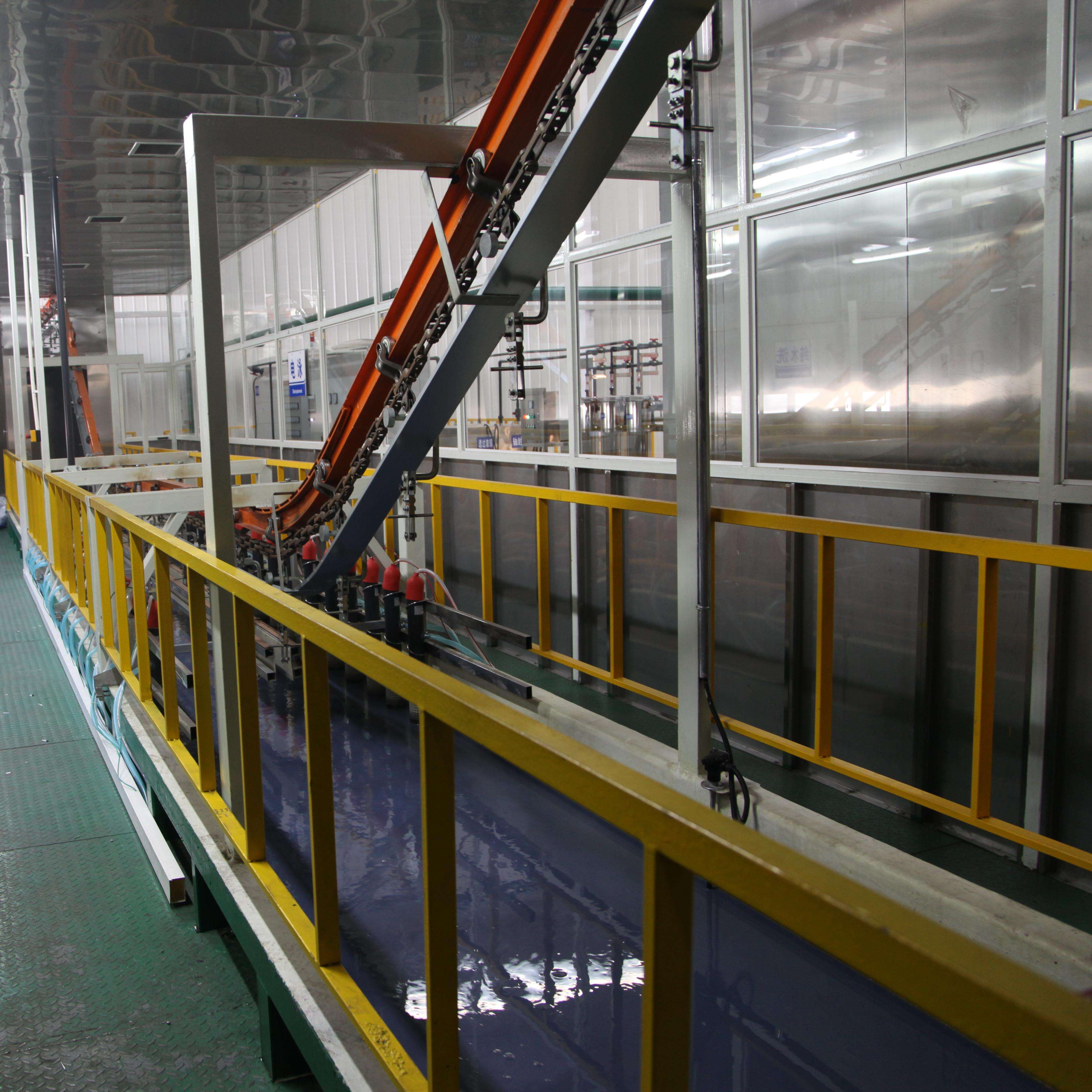

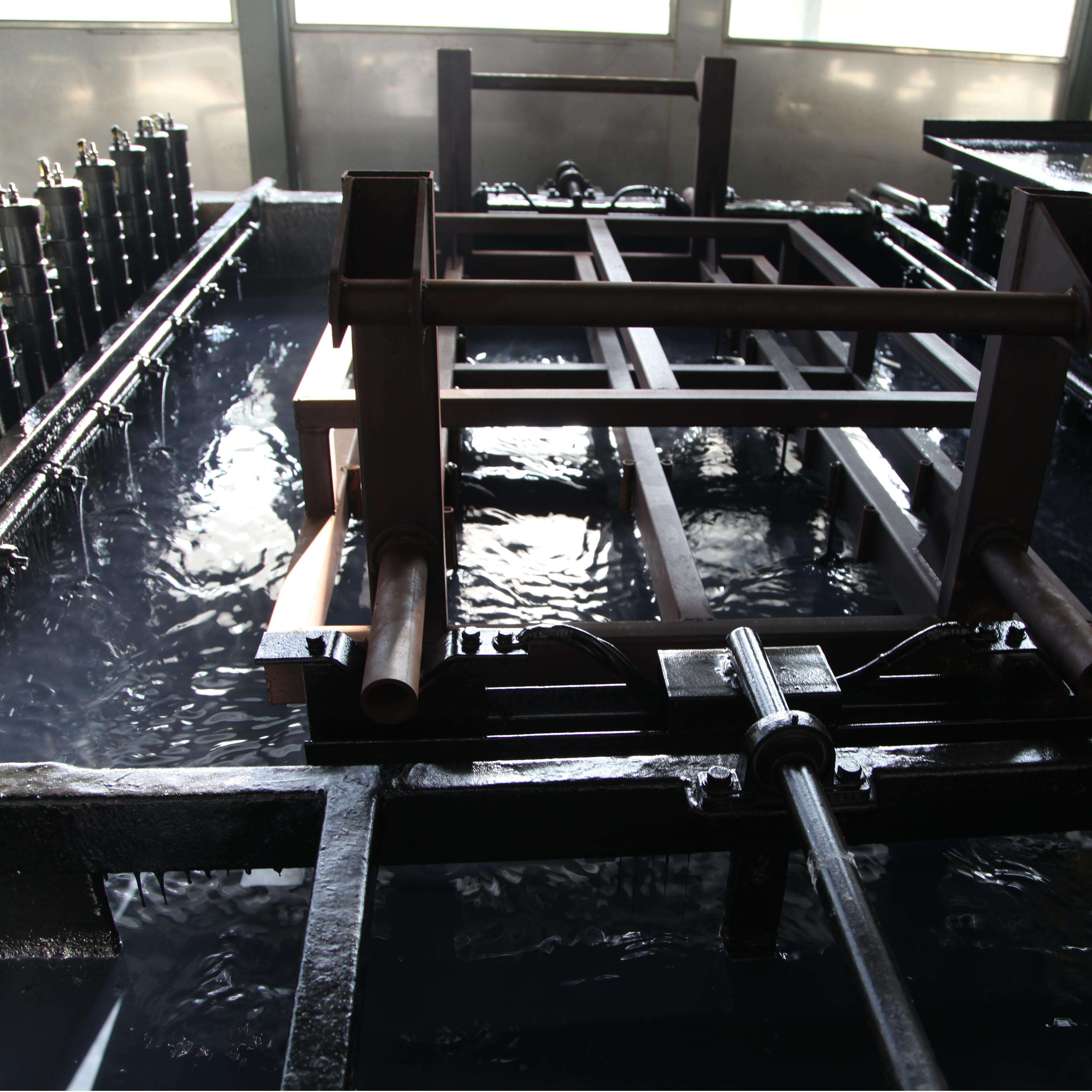

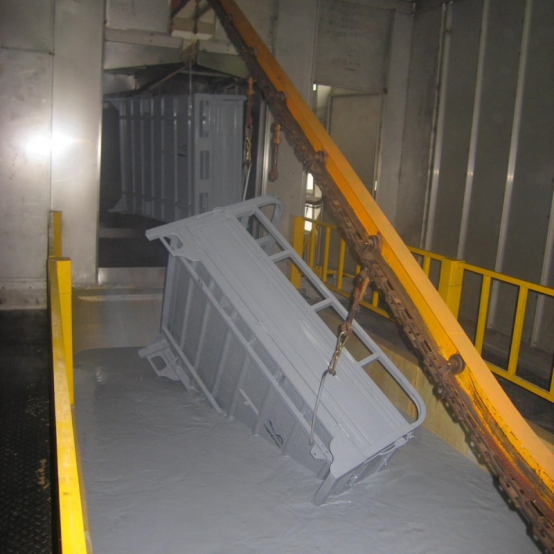

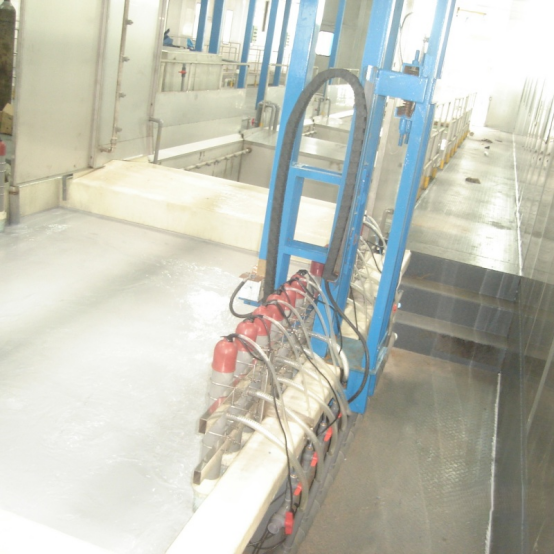

Electrophoresis tank: Parameters: voltage 150–400V | time 2–4min | temperature 28–32°C | solid content 18–20%.

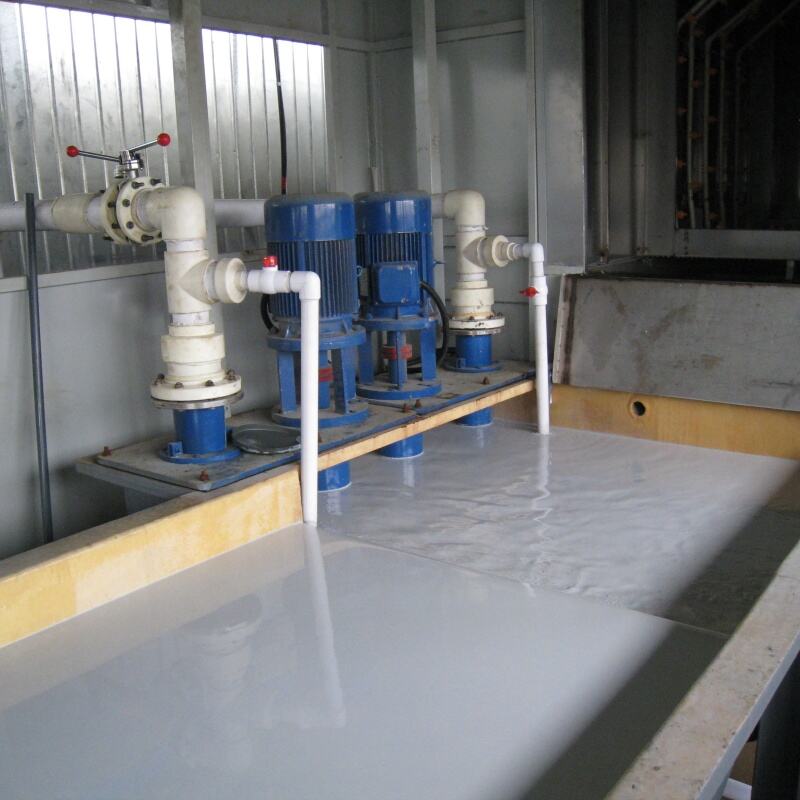

Post-rinsing: Ultrafiltration (UF) recirculation system recovers floating paint, with a recovery rate >99%.

Baking and Curing: 160–180°C × 20–30min (deactivates crosslinking agent, completes curing)

Automotive Manufacturing: Body panels, wheels, chassis (accounting for 70% of the global e-coat market).

Energy engineering: Oil/gas pipelines, offshore wind turbine towers (paired with cathodic protection systems).

Electronics and appliances: Motor housings, radiators (insulation voltage resistance > 5 kV/mm).

Emerging fields: Hydrogen energy storage and transportation equipment, lithium-ion battery casings (corrosion protection + insulation integration).

Cathodic ED Paint Epoxy Electrophoretic Coating

Corrosion protection: When used in combination with cathodic protection systems, it can extend the service life of pipelines in soil/marine environments.

Uniform coverage: Achieves consistent coating thickness (15–30microns) on complex geometries (such as car frames).

Environmental safety: Water-based formulations reduce volatile organic compound (VOC) emissions by more than 90% compared to solvent-based coatings.
