Fully Automatic Powder Coating Line for Metal Surfaces

The Fully Automatic Powder Coating Line for Metal Surfaces represents a specialized industrial finishing solution engineered exclusively for metal substrate applications. From steel and aluminum to stainless steel and alloys, this system delivers consistent, high-quality powder coatings through a seamless automated process. By integrating precision pretreatment, controlled spraying, and efficient curing technologies, manufacturers achieve superior surface protection and aesthetic appeal while optimizing production efficiency.

Fully Automatic Powder Coating Line for Metal Surfaces

1.Metal-Specific Design: Optimized for all metal substrates including ferrous and non-ferrous metals

2.Complete Automation: PLC-controlled with real-time monitoring and adjustment capabilities

3.High Recovery Efficiency: Advanced powder recovery system achieves over 96% material utilization

4.Superior Adhesion: Enhanced surface pretreatment ensures excellent coating bond and durability

5.Energy Efficient: Multiple heating options with optimized thermal management systems

6.Uniform Coverage: Precision electrostatic spraying provides consistent coating thickness

7.Corrosion Resistance: Creates protective barrier against environmental and chemical exposure

8.Customized Configuration: Adaptable to specific metal types, shapes, and production volumes

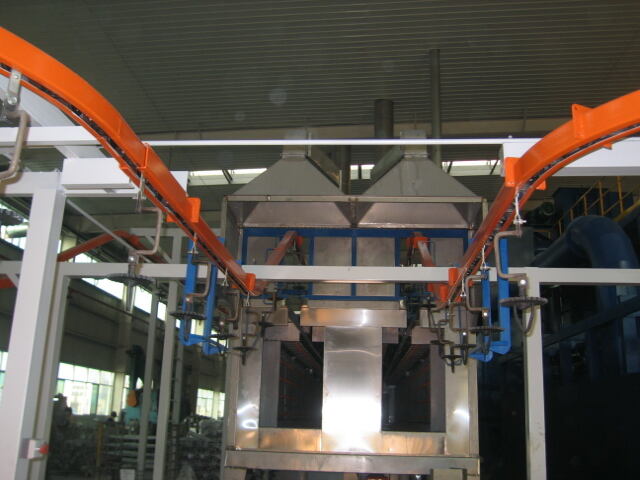

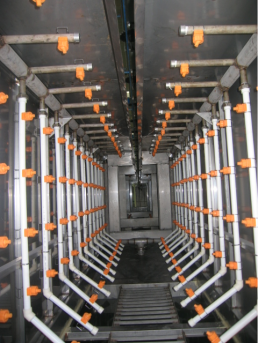

1. Pre-treatment System for Metals

Specialized surface preparation is critical for metal coating performance:

Alkaline Cleaning: Removes oils, greases, and industrial contaminants
Surface Etching: Acid-based treatments for optimal coating adhesion
Conversion Coating: Chromium-free or zinc phosphate treatments for corrosion protection
Rinsing & Drying: Multi-stage rinsing followed by forced air drying

Fully Automatic Powder Coating Line for Metal Surfaces	Fully Automatic Powder Coating Line for Metal Surfaces

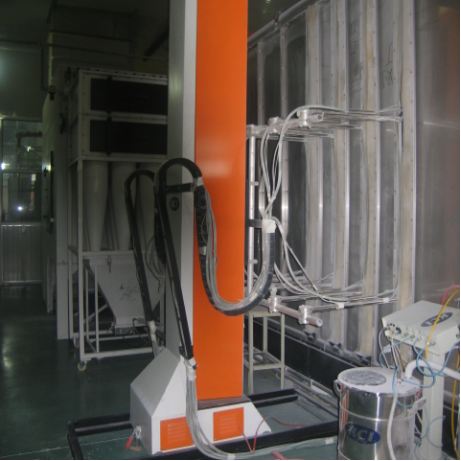

2. Powder Application System

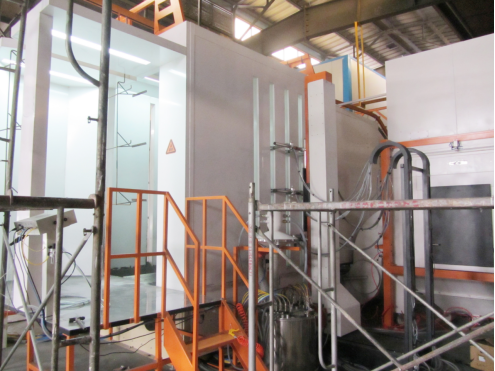

Electrostatic Spray Booths: Designed for metal surface characteristics
Automatic Spray Guns: Programmable reciprocators for consistent coverage
Powder Recovery Units: High-efficiency cyclonic or cartridge filtration systems
Color Change Capability: Quick-change systems for multi-color production

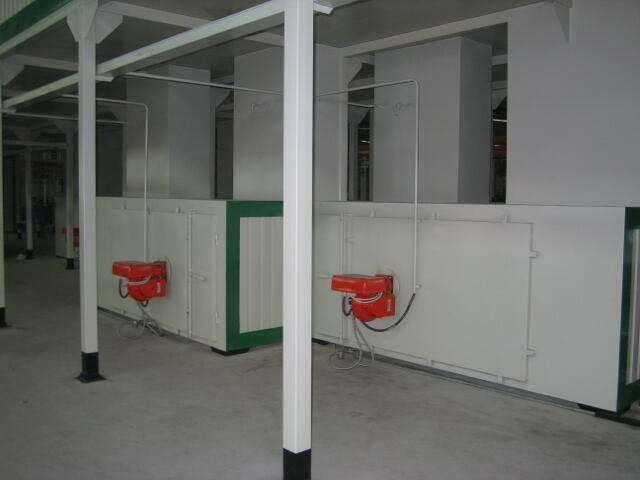

3. Curing Technology

Convection Ovens: Uniform heat distribution for consistent curing
Infrared Systems: Energy-efficient curing for specific metal applications
Temperature Profiling: Precision control for different metal thicknesses
Post-Cure Cooling: Controlled cooling to prevent thermal stress

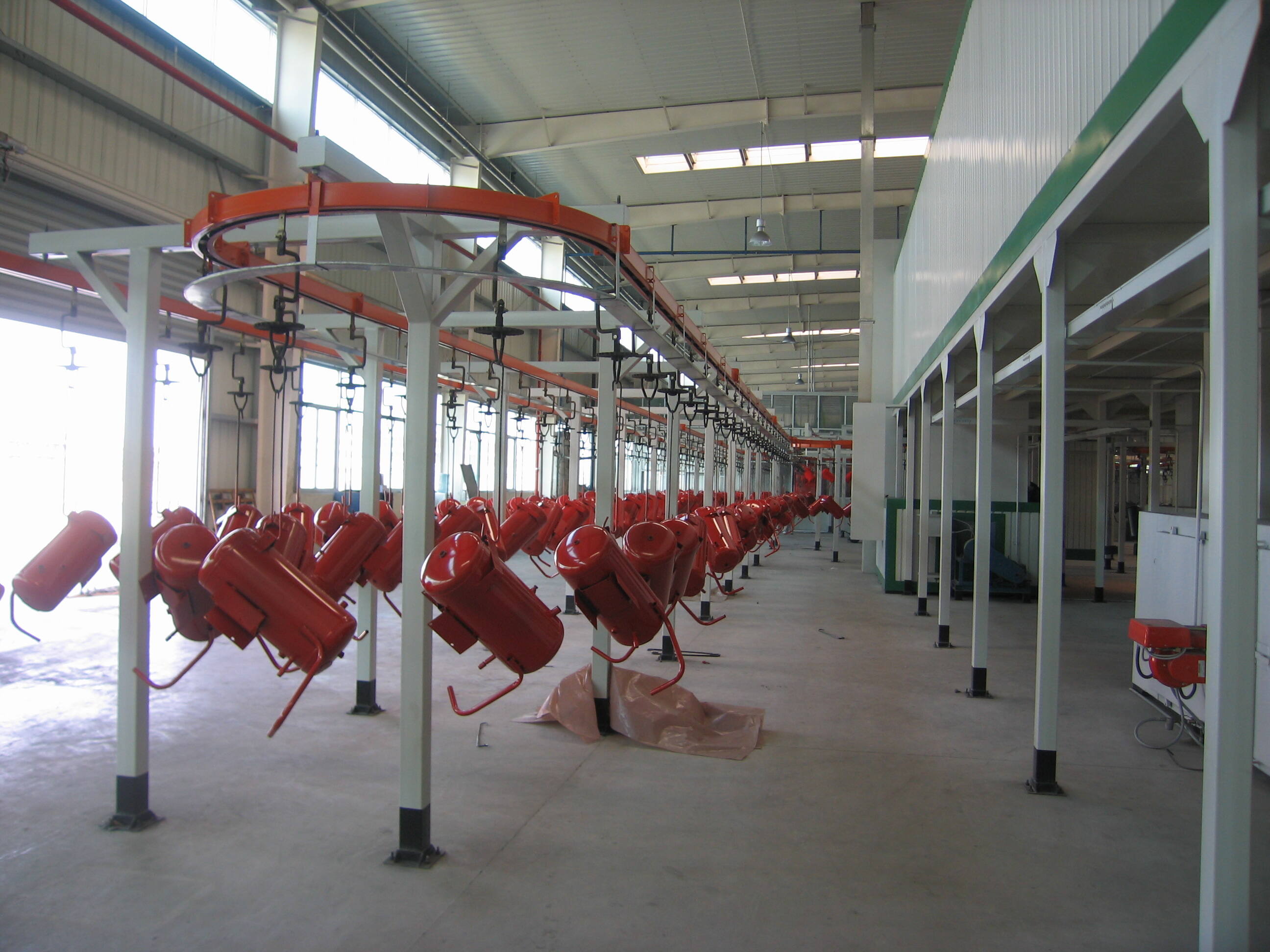

4. Material Handling

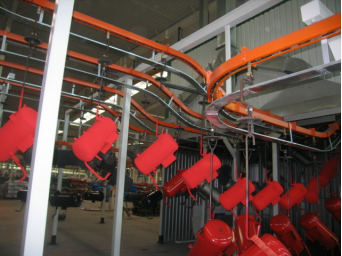

Overhead Conveyors: Adjustable speed for different metal weights
Hanger Systems: Custom racks and hangers for metal components
Loading/Unloading Automation: Robotic integration available

1.Automotive: Body panels, wheels, chassis components

2.Architectural: Window frames, curtain walls, structural elements

3.Industrial: Machinery enclosures, equipment housings, storage systems

4.Consumer Goods: Appliances, furniture, fixtures

5.Manufacturing: Parts, components, assemblies requiring protective finishes

1. Size Configuration: Custom lengths and widths for specific metal parts

2. Temperature Ranges: Adjustable for different metal types and thicknesses

3. Automation Level: From semi-automatic to fully robotic integration

4. Environmental Controls: VOC and emission management systems

5. Safety Features: Explosion-proofing, fire suppression, emergency systems

Fully Automatic Powder Coating Line for Metal Surfaces

Q: What metal types work best with your system?

A: Our system is optimized for all common metals including mild steel, aluminum, stainless steel, galvanized steel, and various alloys.

Q: Can you handle different metal thicknesses?

A: Yes, our systems feature adjustable parameters to accommodate thin sheet metal up to heavy structural components.

Q: What pretreatment is recommended for aluminum surfaces?

A: We typically recommend chrome-free conversion coating or specialized aluminum pretreatment chemistry for optimal results.

Q: How do you ensure coating adhesion on different metals?

A: Our pretreatment systems are specifically designed for metal surfaces, and we customize chemical processes based on metal type and finish requirements.

Q: What production capacity can your systems handle?

A: We design systems from small batch processing (100 pieces/day) to high-volume continuous lines (10,000+ pieces/day).

Ready to enhance your metal finishing capabilities? Contact our metal coating specialists today for a detailed assessment of your requirements and a customized system proposal. We provide complete solutions from initial design through installation, training, and ongoing support.
