Automotive Spare Parts Electrophoretic Coating Line

The Automotive Spare Parts Electrophoretic Coating Line is a fully automated, precision-engineered e-coating system designed specifically for automotive components and spare parts. Using advanced electrophoresis technology, this line ensures uniform, high-adhesion, corrosion-resistant coating coverage even on complex geometries, cavities, and hard-to-reach areas. The system is ideal for automotive manufacturers and Tier-1 suppliers seeking consistent quality, high throughput, and superior surface protection for parts such as chassis components, brackets, fasteners, and structural assemblies.

Automotive Spare Parts Electrophoretic Coating Line

1. Pre-treatment Stage

Proper surface preparation is essential for optimal coating adhesion and performance:

• Degreasing: Alkaline or acidic cleaners remove oils, drawing compounds, and shop soils.
• Rinsing: Multiple counterflow rinsing stages ensure complete contaminant removal.
• Surface Activation: Zinc or iron phosphate conversion coatings enhance corrosion resistance and adhesion.
• Final Rinsing & DI Rinse: Deionized water rinse prevents contamination of the e-coat bath.

2. Electrophoretic Coating Stage

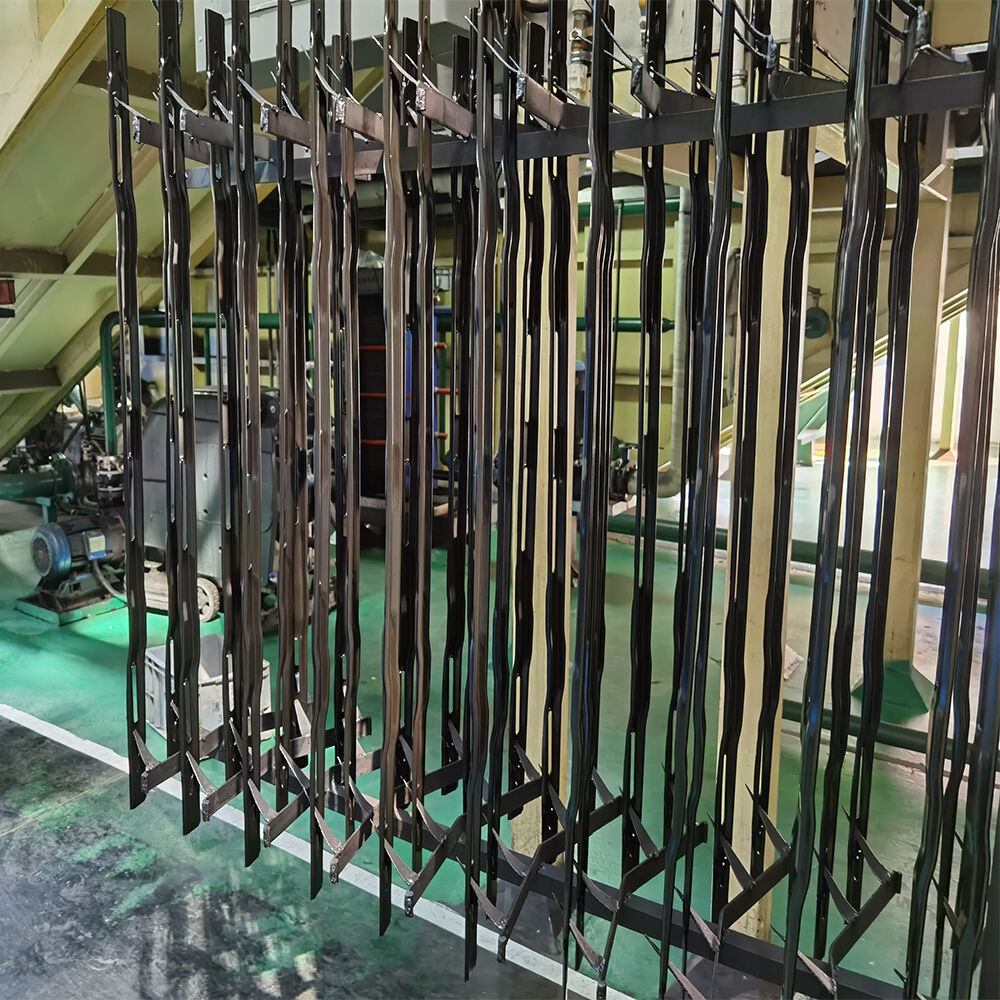

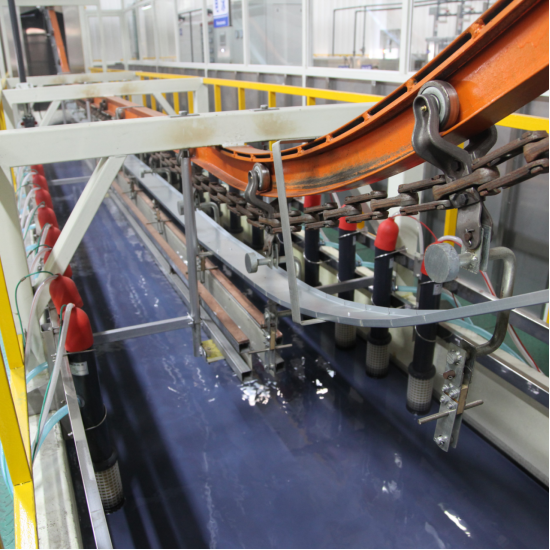

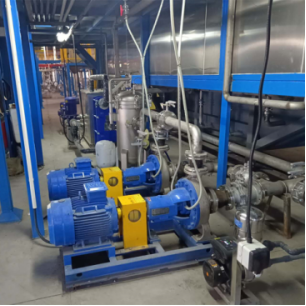

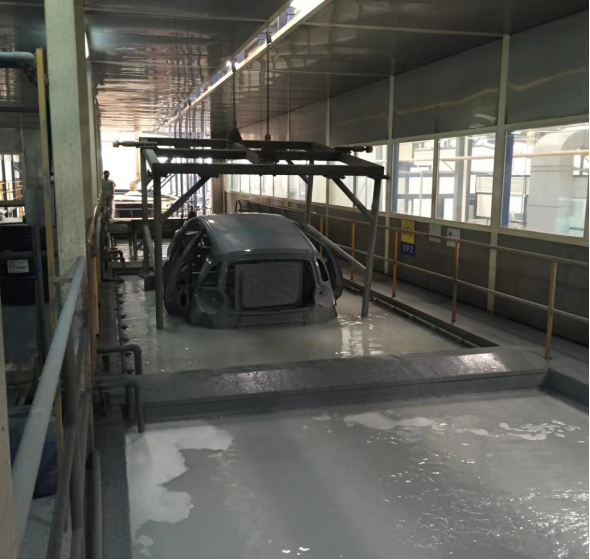

• E-coat Tank: Fully insulated and temperature-controlled bath with continuous circulation and filtration.
• Anode/Cathode Configuration: Adjustable based on part geometry and coating requirements (anodic or cathodic e-coat).
• Voltage & Current Control: Precision DC power supply for consistent film build and penetration.
• Bath Monitoring: Automated control of pH, solids content, temperature, and conductivity.

3. Post-Rinse & Recovery

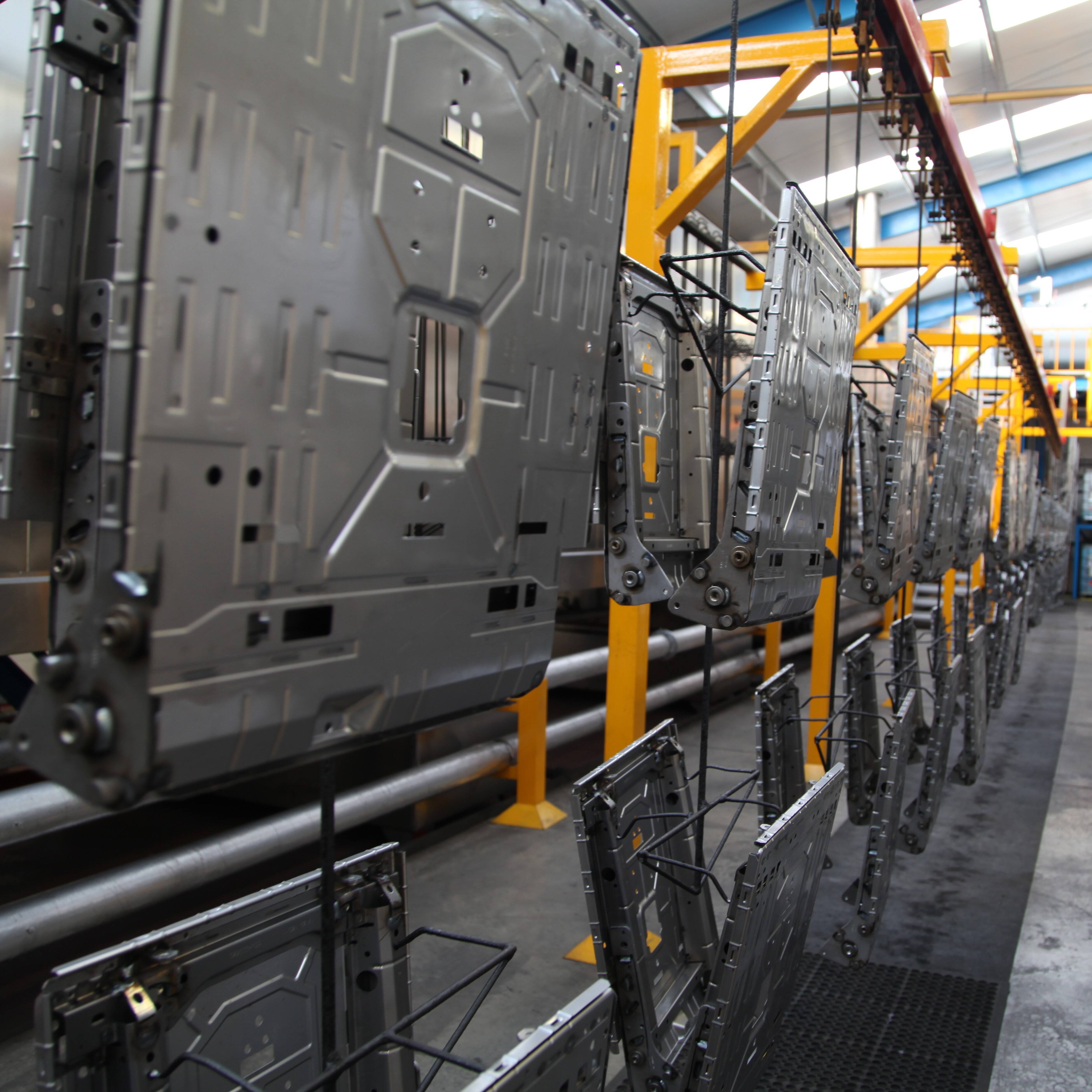

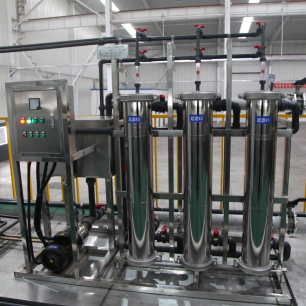

• Ultrafiltration (UF) System: Recovers excess coating material, reduces waste, and maintains bath stability.
• Permeate Rinse: Uses UF permeate to rinse off loosely adhered coating, improving finish quality and material efficiency.

Post-Rinse & Recovery	Post-Rinse & Recovery

4. Curing Stage

• Circulation Oven: Uniform temperature distribution for complete cross-linking of the e-coat film.
• Curing Profile: Typically 160–180°C for 20–30 minutes, adjustable based on part mass and coating type.

5. Cooling & Unloading

• Forced Air Cooling: Reduces part temperature for safe handling and packaging.
• Automated Unloading: Integrated with conveyor for continuous production flow.

1.Chassis and suspension components

2.Engine brackets and mounts

3.Brake system parts

4.Fasteners, bolts, and clips

5.Transmission and steering parts

6.Structural reinforcements

7.Body-in-white components

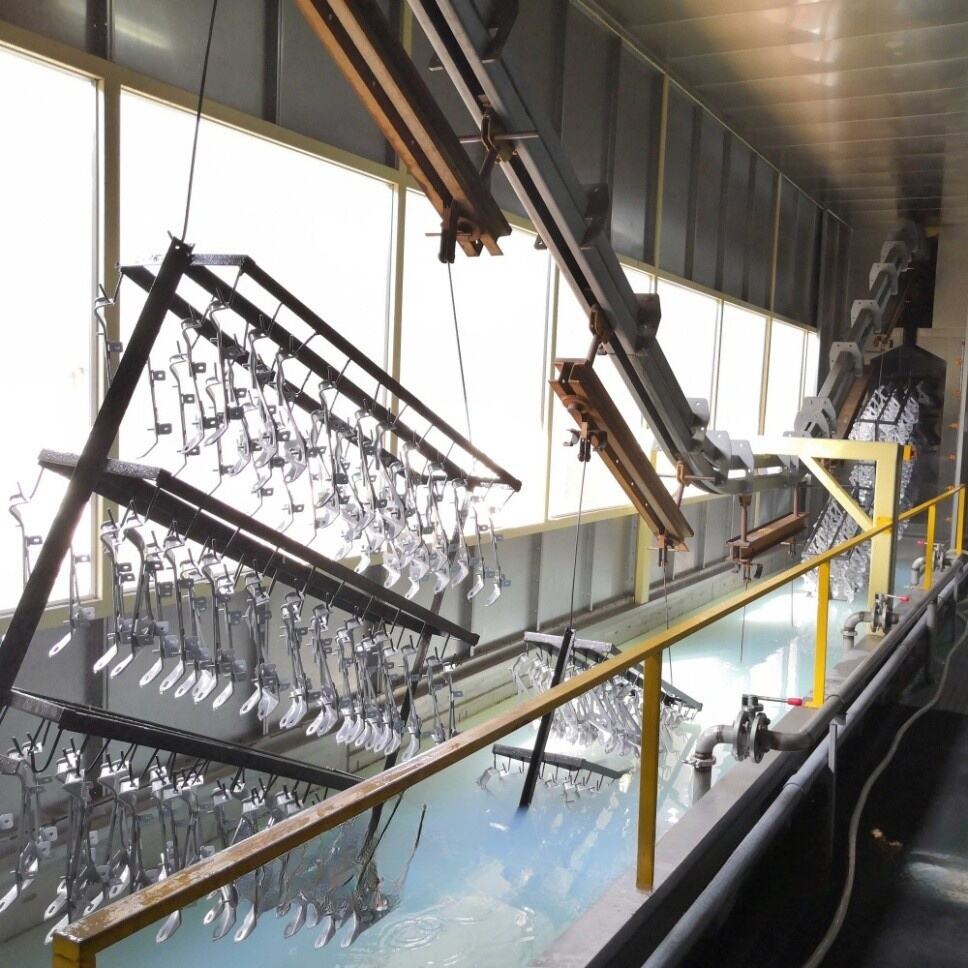

Automotive Spare Parts Electrophoretic Coating Line

1.Line Layout: Straight-through, U-shaped, or multi-level designs

2.Part Conveying: Custom racks, baskets, or fixtures for different components

3.Coating Color: Single-color or multi-tank systems for color changes

4.Automation Level: From semi-auto to fully robotic loading/unloading

5.Energy Source: Electric, gas, or steam-based heating systems

Q: What is electrophoretic coating?
A: E-coating is an immersion process where charged paint particles are deposited onto a conductive substrate through an electric field, ensuring complete and uniform coverage.

Q: Why choose e-coating for automotive parts?
A: E-coating offers superior corrosion protection, excellent edge coverage, and consistent film thickness- critical for automotive durability and safety.

Q: Can the system coat different part sizes in the same run?
A: Yes, with proper rack design and bath agitation, mixed loads can be processed efficiently.

Q: What pretreatment is required?
A: Zinc or iron phosphate is recommended for automotive steel components; for aluminum, chromium-free conversion coatings are used.

Q: Is the system environmentally friendly?
A: Yes. E-coating produces minimal waste, uses water-based coatings, and incorporates closed-loop rinse systems.
