Application Trends and Process Optimization of Powder Coating in the Home Appliance Industry

The aesthetic quality of home appliances directly influences consumer purchasing decisions, with surface coating serving as a critical process for achieving visual appeal, durability, and environmental sustainability. Powder coating has emerged as the predominant finishing technique for white goods such as refrigerators, washing machines, and air conditioners, owing to its superior coating properties, high material utilisation, and minimal environmental impact.

Compared to conventional solvent-based coatings, powder coating presents a range of compelling benefits that align with modern manufacturing and environmental priorities:

- Environmental Compliance: Powder coatings contain no solvents, resulting in negligible VOC emissions. This not only supports cleaner production but also simplifies compliance with increasingly stringent international regulations such as REACH and ROHS.

- Material Efficiency: With transfer efficiencies regularly exceeding 95%, powder coating drastically reduces material waste compared to liquid painting, where overspray and solvent evaporation lead to significant losses.

- Coating Performance: Powder coatings deliver uniform film thickness, even on complex geometries, providing excellent mechanical properties including impact resistance, flexibility, and adhesion.

- Aesthetic Versatility: Manufacturers can choose from a wide spectrum of Colors, gloss levels, and textured effects - from smooth high-gloss finishes to durable matte or hammer-tone textures - allowing for greater product differentiation.

- Operational Safety: Eliminating flammable solvents reduces fire hazards and improves workplace safety, while also lowering insurance costs and storage requirements.

A complete powder coating line for household appliances is a carefully integrated system comprising several key stages:

- Pre-treatment System: This foundational stage typically involves a multi-stage process including alkaline degreasing, water rinsing, zinc or iron phosphatizing, and final sealing rinses. Proper pre-treatment is essential for ensuring optimal coating adhesion, corrosion resistance, and long-term durability. Modern systems often incorporate closed-loop water management and effluent treatment to minimize water consumption and discharge.

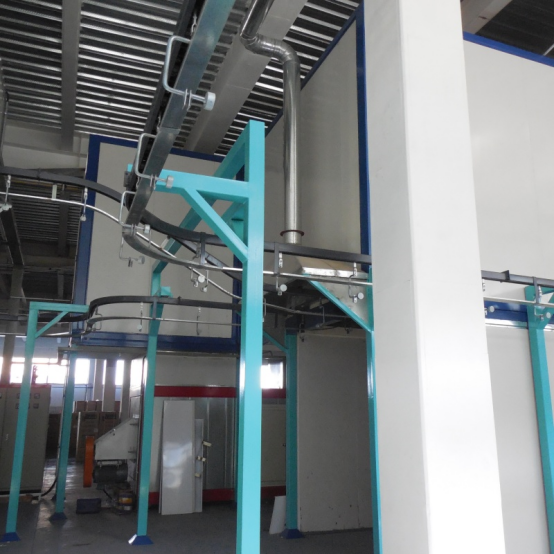

- Powder Coating Booth: Contemporary booths are designed for high efficiency and flexibility. They feature automatic reciprocating spray guns mounted on programmable lifts, electrostatic high-voltage generators, and highly efficient powder recovery systems using cartridge filters or cyclone separators. Advanced booths may also includeionized air cleaning systems to reduce contamination and improve first-pass transfer efficiency.

- Curing Oven: Curing transforms the deposited powder into a continuous, durable film. Modern ovens utilize precise temperature control through combinations of infrared emitters and convection heating, ensuring uniform heat distribution across varied product shapes and masses. Energy-efficient designs often incorporate heat exchangers and exhaust air recirculation to reduce thermal losses.

- Material Handling and Conveyor System: An intelligently designed conveyor system - whether overhead, belt, or roller conveyor—ensures smooth product flow through all stages. Modern systems include accumulation zones to balance throughput, variable speed drives for process adjustment, and sometimes even RFID tracking for full traceability of each item through the coating process.

Facing constant pressure to reduce costs and environmental footprint, appliance manufacturers are driving several key optimizations in powder coating technology:

- Waste Heat Recovery: Innovative systems capture thermal energy from curing oven exhausts and repurpose it for pre-treatment drying, workspace heating, or even pre-heating incoming parts. This can reduce overall energy consumption by 20–30%, delivering both economic and environmental benefits.

- Rapid Color Change Capability: Modular booth designs combined with automated purge systems allow Color changes to be executed in under 15 minutes, compared to hours in traditional setups. Quick-disconnect modules, self-cleaning filters, and programmable purge sequences minimize downtime and material loss during changeovers, enabling smaller batch sizes and greater production flexibility.

- Intelligent Process Control: Integrated sensor networks continuously monitor critical parameters such as booth airflow, powder concentration, humidity, temperature, and electrostatic charge. Advanced control algorithms use this data to automatically adjust equipment settings, maintaining optimal application conditions, reducing rejects, and ensuring consistent quality.

- Powder Management and Recycling: Modern recovery systems achieve near-total powder reclamation. Sophisticated sieving and blending stations allow reclaimed powder to be reintroduced into the fresh powder supply without compromising quality, pushing overall material utilization toward 99%.

The evolution of powder coating extends beyond process equipment to include advanced material science:

- Functional Powders: New formulations offer added value, such as low-temperature cure powders (enabling coating of heat-sensitive substrates), antimicrobial additives for hygienic surfaces in refrigerators and washing machines, anti-fingerprint finishes for touch panels and stainless steel-look appliances, and even conductive powders for EMI shielding in electronic housings.

- Hybrid and Composite Finishes: Combining powder coating with other technologies is gaining traction. For example, applying a clear powder overcoat on pre-printed films or textured substrates creates deep visual effects and enhanced tactile qualities for premium appliance lines. Similarly, partial masking techniques allow for two-tone or accent Color effects in a single coating cycle.

- Enhanced Durability and Performance: Next-generation powders offer improved resistance to chemicals, detergents, UV radiation, and abrasion—critical for appliances subjected to frequent cleaning and harsh operating environments. Accelerated testing protocols now correlate lab performance with real-world lifespan, giving designers and engineers greater confidence in finish longevity.

Ensuring consistent quality and compliance is paramount. Modern powder coating lines integrate inline monitoring devices such as film thickness gauges, gloss meters, Color spectrophotometers, and adhesion testers. Data from these devices feeds into Statistical Process Control (SPC) systems, enabling real-time quality trending and early detection of process deviations.

Powder-coated appliances must meet a range of international standards, including:

- Performance Standards: GB/T 13452 (China), ISO 2409 (international) for cross-cut adhesion, ASTM B117 for salt spray resistance, and various abrasion and impact tests.

- Safety and Environmental Regulations: Production line design must comply with equipment safety standards (e.g., GB 14444 for spray booth safety) and environmental codes governing emissions and waste management.

- Product Certifications: Final products often require marks such as UL (safety), CE (EU compliance), and specific food-contact or hygienic certifications for relevant appliance parts.

As the home appliance industry continues to evolve toward smarter, more connected, and more sustainable products, the surface finishing process will remain a critical component of product value. Manufacturers who embrace the latest trends in powder coating technology—from intelligent automation and energy recovery to advanced material formulations—will be well-positioned to lead in a competitive global marketplace.
